BATTERY PACK SPECIFICATIONS

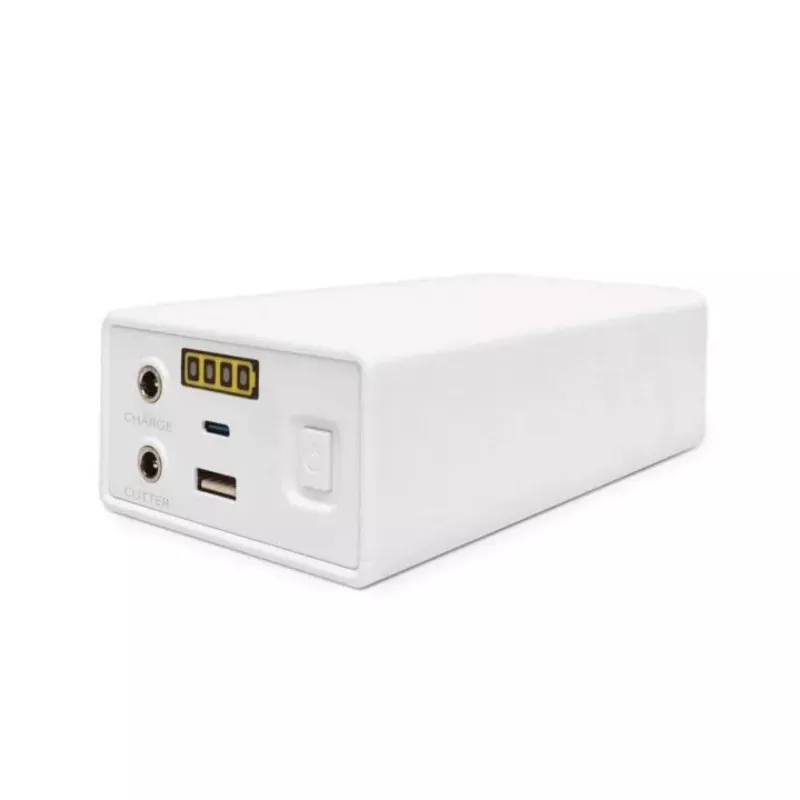

- Lithium ion Battery Pack
- Rated Capacity: 17000mAh (5V-3A)
- Capacity: 21.6V/4.4Ah 96 Wh
- Size: 6.3″W x 3.2″D x 1.9″H (16 cm x 8.1 cm x 4.8 cm)
- Weight: 1.63lbs (.74kg) – fits in the GO! Fabric Cutter Backpack (Black) (55891)
- Input:
- DC Plug: 24V/5.5A
- USB-C: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V, 2.25A, 45W Max
- Output:
- DC Plug: 24V/4A
- USB-A: 5V/3A, 9V/2A, 12V/1.5A, 18W Max
- USB-C: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/2.25A, 45W Max
HOW TO OPERATE
- Power On/Off
- ON: Push the button to turn battery pack on.
- OFF: Push the button again to turn battery pack off.
- Capacity Display: When battery is powered “ON”, the four power indicator lights will illuminate, showing the current battery power and capacity.
CHARGING INSTRUCTIONS
- Connect AC/DC charger to a power outlet (100-240V compatible).
- Push Power Switch to turn battery pack ON. Important: Always turn battery on before plugging in charger.
- Plug AC/DC charger into battery pack.
- Check chargers LED indicator:
- RED: Battery is charging.
- GREEN: Charging is complete or the charging circuit is open. If light turns GREEN immediately, make sure PowerSwitch has been turned ON.
- During charging, the LED will change from RED to GREEN once the battery reaches approximately 95% charged.
- Push the power switch again to turn battery pack OFF after charging to open the circuit and prevent unnecessaryLED power consumption.
- Estimated full charge time:
- Full charge time Battery capacity Charger output current.
SAFETY & STORAGE GUIDELINES
Contains a lithiumion battery.
CAUTION: Risk of fire or burns. Do not open, crush, expose to impact, heat above recommended temperatures, or incinerate. Always follow manufacturers instructions.
Shipping Notice: Due to being flammable, the battery pack can only be shipped via Ground Shipping.
- Store properly: Keep battery pack in a cool, dry, indoor location.
- Long-term storage: While battery can be stored for more than six months, charge it every three months to helpextend its overall lifespan.
- Do not modify: Never open, disassemble, or alter the battery pack.
- Correct connection: Do not reverse the input or output connections.
- Keep out of reach of children: Store and operate battery pack safely away from young children.
- Use approved chargers only: Always use a qualified, compatible charger.
- If something seems wrong: Stop using product immediately if you notice any unusual behavior or malfunction duringcharging
